Bobcat T770 Compact Track Loader

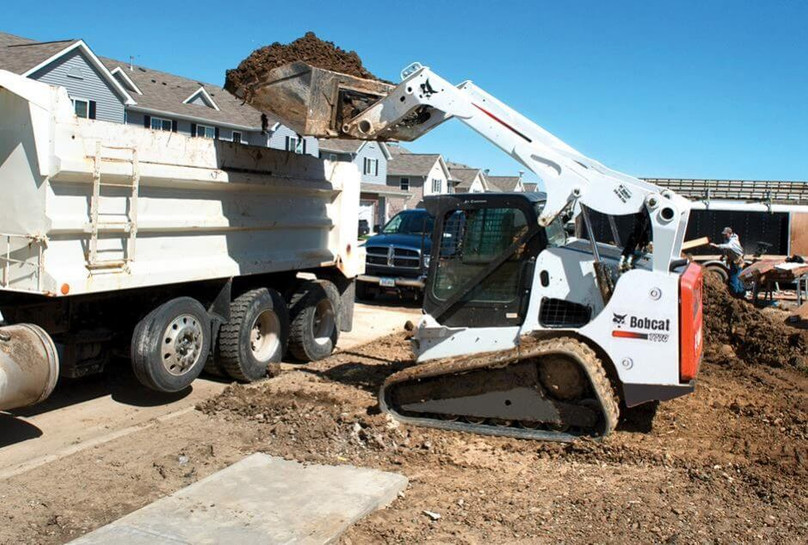

| With 11 feet of vertical lift, the Bobcat® T770 compact track loader is primed for loading trucks, grinders and hoppers as well as many other jobs. The vertical lift path allows you to easily place cargo and tackle demanding tasks. The T770 is an interim Tier 4 model. |
- Backup Alarm
- BICS System (Interlock)
- Operating Lights
- Suspension Seat
- Engine Shutdown
- Auxiliary Hydraulics
- Bob-Tach Attachment System
- Horn
Model:T770
Emissions Tier (EPA): Tier 4, Engine Cooling: Liquid, Engine Fuel: Diesel, Horsepower (hp): 92, Rated Operating Capacity (ISO) (lbs.): 3475, Operating Capacity (50% of Tip) (lbs.): 4960, Operating Weight (lbs.): 10515, Travel Speed (mph): 6, Travel Speed (2-speed option) (mph): 9.3, Ground Pressure (Rubber) (psi): 4.2, Fuel Tank (gal.): 44.4, Auxiliary Std Flow (gal/min): 23, Auxiliary High Flow (gal/min): 36.6, Length (in.): 141.6, Length without Attachment (in.): 114.3, Length with Standard Bucket (in.): 141.6, Width (in.): 78, Width (with bucket) (in.): 80, Height (in.): 81.3, Height with Operator Cab (in.): 81.3, Height to Bucket Hinge Pin (in.): 132, Reach @ Maximum Height (in.): 33.6, Turning Radius (in.): 88, Length of Track on Ground (in.): 63.7, Track Width (in.): 17.7, Track Width - Optional (in.): 12.6, Wheelbase (in.): N/A
Model:T770
