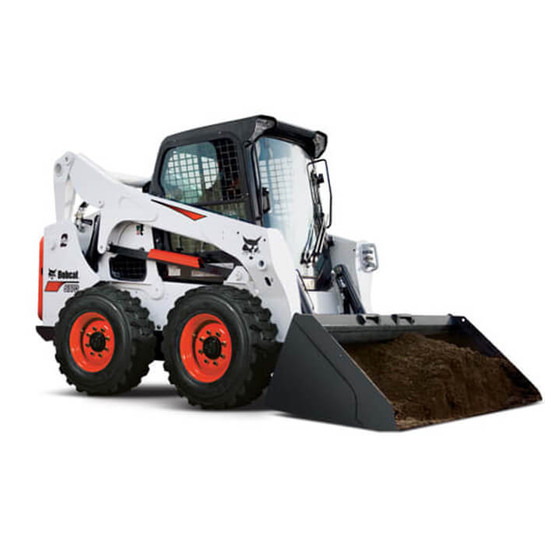

Bobcat S770 Skid-Steer Loader
| The Bobcat® S770 skid-steer loader is ready for tough digging, loading, pushing, grading and other assignments. A Tier 4 model, the S770’s vertical lift path gives more reach at full lift height without any decrease in performance. |
- Adjustable Seat
- Backup Alarm
- BICS System (Interlock)
- Operating Lights
- Parking Brake
- Rear Window
- Top Window
- Lift-Arm Support
- Seat Belt
- Suspension Seat
- Engine Shutdown
- Auxiliary Hydraulics
- Spark Arrestor Muffler
- Bob-Tach Attachment System
- Horn
Model:S770
Emissions Tier (EPA): Tier 4, Engine Cooling: Liquid, Engine Fuel: Diesel, Horsepower (hp): 92, Rated Operating Capacity (ISO) (lbs.): 3350, Operating Capacity (50% of Tip) (lbs.): N/A, Operating Weight (lbs.): 9314, Travel Speed (mph): 7.1, Travel Speed (2-speed option) (mph): 12.3, Ground Pressure (Rubber) (psi): N/A, Fuel Tank (gal.): 23.9, Auxiliary Std Flow (gal/min): 23, Auxiliary High Flow (gal/min): 36.6, Length (in.): 141.6, Length without Attachment (in.): 114.3, Length with Standard Bucket (in.): 141.6, Width (in.): 72.1, Width (with bucket) (in.): 74, Height (in.): 81.3, Height with Operator Cab (in.): 81.3, Height to Bucket Hinge Pin (in.): 132, Reach @ Maximum Height (in.): 31.5, Turning Radius (in.): 85.8, Length of Track on Ground (in.): N/A, Track Width (in.): N/A, Track Width - Optional (in.): N/A, Wheelbase (in.): 48.3
Model:S770
