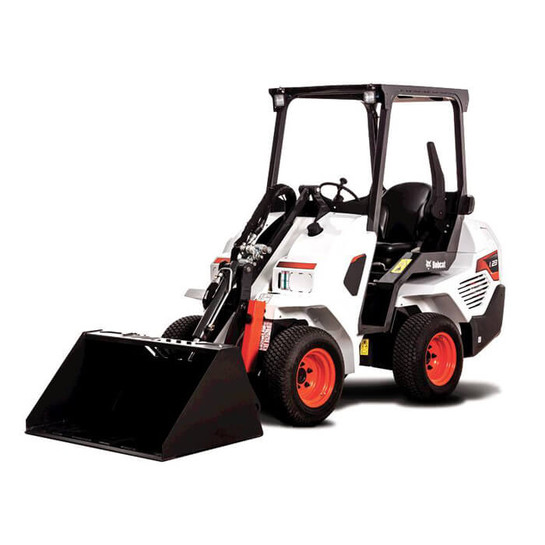

Bobcat L23 Small Articulated Loader
| The Bobcat® L23 small articulated loader is small enough to fit in small lots, backyards and other tight jobsites and tough enough to take on the job with minimal ground disturbance. A tight-turning articulation joint allows maneuverability in confined spaces. It delivers an impressive lifting capability to maximize productivity. And you can add Bobcat attachments for added versatility. |
- Adjustable Seat
- Backup Alarm
- BICS System (Interlock)
- Lift-Arm Support
- Hydraulic Bucket Positioning
- Auxiliary Hydraulics
- Spark Arrestor Muffler
- Bob-Tach Attachment System
- Horn
- Front and Rear Work Lights
- Cup Holder
Model:L23
Emissions Tier (EPA): Tier 4, Engine Cooling: Liquid, Engine Fuel: Diesel, Horsepower (hp): 24.8, Rated Operating Capacity (ISO) (lbs.): Straight - 1395
Articulated - 1159, Operating Capacity (50% of Tip) (lbs.): N/A, Operating Weight (lbs.): 3790, Travel Speed (mph): 8.2, Travel Speed (2-speed option) (mph): N/A, Ground Pressure (Rubber) (psi): N/A, Fuel Tank (gal.): N/A, Auxiliary Std Flow (gal/min): 12.1, Auxiliary High Flow (gal/min): N/A, Length (in.): 122.4, Length without Attachment (in.): 93.2, Length with Standard Bucket (in.): 122.4, Width (in.): 43.2, Width (with bucket) (in.): 44, Height (in.): 78.1, Height with Operator Cab (in.): 78.1, Height to Bucket Hinge Pin (in.): 85.4, Reach @ Maximum Height (in.): 16.8, Turning Radius (in.): 77.2, Length of Track on Ground (in.): N/A, Track Width (in.): N/A, Track Width - Optional (in.): N/A, Wheelbase (in.): 47.2
Model:L23
