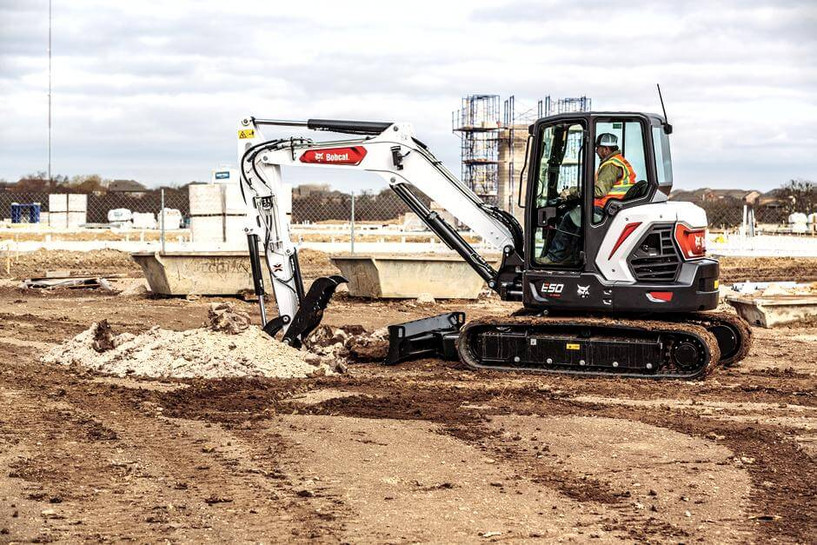

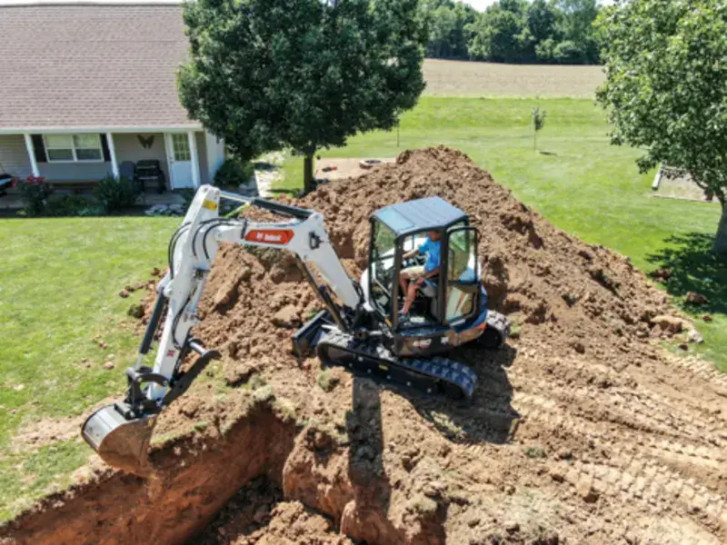

Bobcat E50 Compact Excavator
| A standout in the 4-to-5-ton size class, the Bobcat® E50 compact excavator (mini excavator) works in confined areas without sacrificing digging performance. It features minimal tail swing action with less than an inch of tail overhang. The Tier 4-compliant E50 is available with a long arm option that maximizes dig depth, reach and dump height clearance. An angle blade option is also available. |
- Engine Shutdown
- Auxiliary Hydraulics
- Quick Tach System
- Rubber Track
- Selectable Auxiliary Hydraulic Flow
Model:E50
Emissions Tier (EPA): Tier 4, Engine Fuel: Diesel, Max Governed RPM: 2200, Horsepower (hp): 49.7, Operating Weight (lbs.): 11876, Travel Speed -High (mph): 2.8, Travel Speed -Low (mph): 1.8, Arm Digging Force (lbf): 6987, Bucket Digging Force (lbf): 9511, Rated Lift Capacity (lb): 6746, Lift Radius (in.): 118, Boom Swing - Left: 75, Boom Swing - Right: 50, Max Dig Depth (in.): 136.8, Max Dump Height (in.): 156, Max Reach at Ground Level (in.): 232.8, Fuel Tank (gal.): 19, Auxiliary Std Flow (gal/min): 20, Auxiliary Pressure (psi): 3045, Length (in.): 208.7, Overall Length in Travel Position (in.): 208.7, Width (in.): 77.2, Height (in.): 100.2, Height with Operator Cab (in.): 100.2
