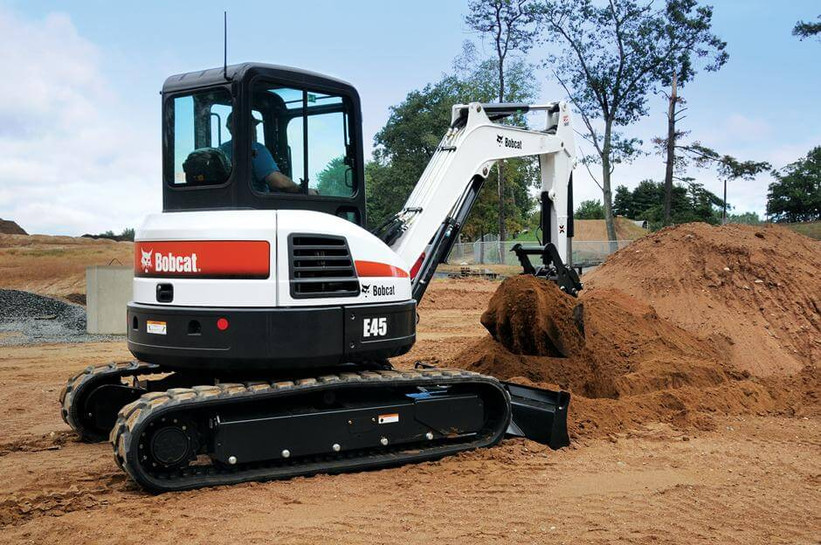

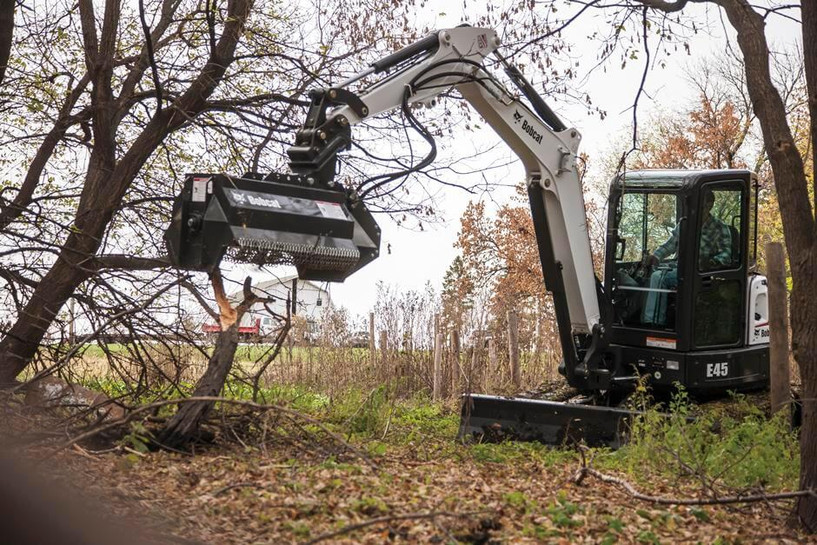

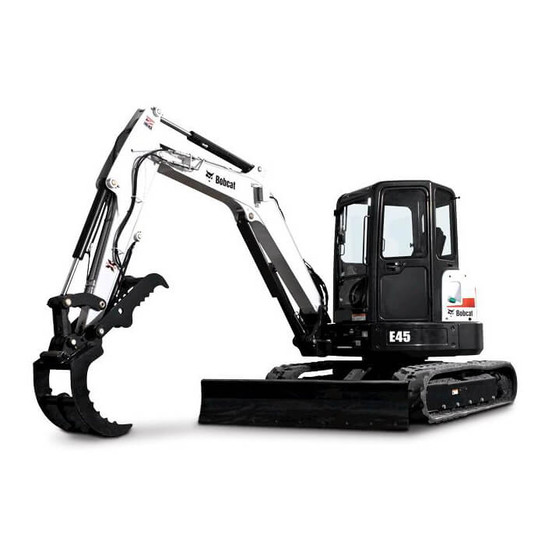

Bobcat E45 Compact Excavator
| The Bobcat® E45 compact excavator (mini excavator) offers Zero Tail Swing (ZTS). Excavate close to surrounding objectives with unrestricted rotation, greater flexibility and reduced potential for damage to the machine and surrounding property. The Tier 4-compliant E45 can be equipped with an angle blade option, long arm option or clamp-ready extendable arm option. |
- 2-Speed Travel
- Angle Blade
- Arm Configurations
- Attachment Features : The industry leader in attachments and attachment-ready features.
- Attachments Versatility
- Auto Idle
- Auto Shift
- Auxiliary Hydraulics
- Blade Float
- Cab Comfort
- Centralized Grease Bank
- Comfort Features : More standard comfort features make hard work easier.
- Depth Check
- Engine Monitoring
- Engine Shutdown
- Ergonomic Controls
- Extendable Arm
- Fingertip Boom Swing Control
- Fuel Fill Alert
- Hydraulic Joystick Control
- Hydraulic X-Change System
- In-Cab Pattern Selector
- In-Track Swing Frame
- Instrumentation
- Integrated Slew Brakes
- Keyless Start
- Machine Protection
- Minimal And Zero Tail Swing
- Panoramic Serviceability
- Performance Features : Unmatched power to help you push through your toughest jobs.
- Powerful Hydraulics
- Pro Clamp System
- Protected Components
- Quick Tach System
- Reversible Cutting Edge
- Rotary Speed Control Knob
- Rubber Track
- Selectable Auxiliary Hydraulic Flow
- Selectable Auxiliary Hydraulic Flow
- Selectable Control Pattern
- Separable Cooling Cores
- Serviceability Features : Easy maintenance routines give you dependable performance and peace of mind.
- Simple Machine Tie-Down
- Soft Grip Joysticks
- Standard X-Change
- Steel Tracks
- Training Resources
- Uptime Protection Features : Intelligently designed components keep you on the job working.
- X-Frame Undercarriage
Model:E45
Emissions Tier (EPA): Tier 4, Engine Fuel: Diesel, Max Governed RPM: 2200, Horsepower (hp): 49.7, Operating Weight (lbs.): 11894, Travel Speed -High (mph): 2.8, Travel Speed -Low (mph): 1.8, Arm Digging Force (lbf): 5962, Bucket Digging Force (lbf): 9511, Rated Lift Capacity (lb): 6534, Lift Radius (in.): 118, Boom Swing - Left: 75, Boom Swing - Right: 50, Max Dig Depth (in.): 12.7, Max Dump Height (in.): 13.9, Max Reach at Ground Level (in.): 20.6, Fuel Tank (gal.): 19, Auxiliary Std Flow (gal/min): 20, Auxiliary Pressure (psi): 3045, Length (in.): 211.3, Overall Length in Travel Position (in.): 211.3, Width (in.): 77.2, Height (in.): 100.2, Height with Operator Cab (in.): 100.2
