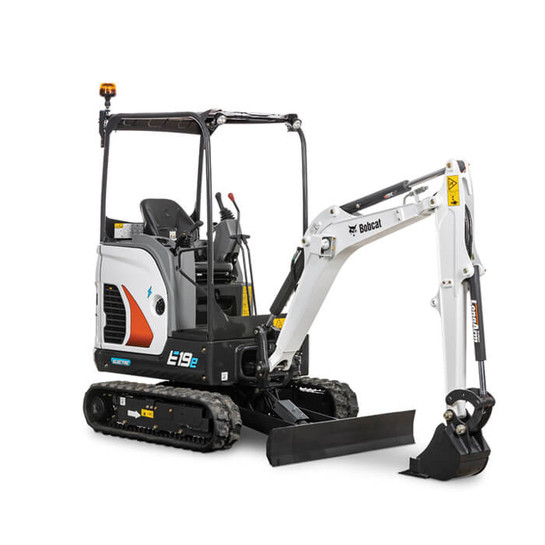

Bobcat E19e Battery-Electric Compact Excavator
| With a small footprint, zero emissions and an in-track swing frame, the E19e can work on small outdoor jobsites as well as indoors, where the alternative is manual labor. The E19e is powered by three lithium-ion batteries that provide a total capacity of 17.28 kWh. The batteries deliver high-energy density, long service life and require no routine maintenance. The standard long-arm gives operators added reach and dig depth, while the increased cylinder size offers excellent breakout forces and lifting ability. Hydraulically retract the undercarriage to just 39-inches wide for access to small job sites - both indoors and out. Then return the undercarriage to its 54-inch stance for a wider footprint and leading performance. The blade also can be retracted at each side for greater access to jobsites. |
- Two-speed travel with auto shift
- On-board charger accepts a common, 120-volt electrical connection
- Standard long arm
- Retractable undercarriage and retractable blade
- Auxiliary hydraulics with two-way flow
- Optional off-board, fast-charge system
Model:E19e
Emissions Tier (EPA): N/A, Engine Fuel: Lithium Ion, Max Governed RPM: N/A, Horsepower (hp): N/A, Operating Weight (lbs.): 4212, Travel Speed -High (mph): 2.3, Travel Speed -Low (mph): 1.1, Arm Digging Force (lbf): 2086, Bucket Digging Force (lbf): 4684, Rated Lift Capacity (lb): 1028, Lift Radius (in.): 118, Boom Swing - Left: 80, Boom Swing - Right: 60, Max Dig Depth (in.): 101, Max Dump Height (in.): 101, Max Reach at Ground Level (in.): 165.9, Fuel Tank (gal.): N/A, Auxiliary Std Flow (gal/min): 6.4, Auxiliary Pressure (psi): 2610, Length (in.): 150.1, Overall Length in Travel Position (in.): 150.1, Width (in.): 38.6, Height (in.): 90.5, Height with Operator Cab (in.): 90.5
